DOZCO D75 Rock Breaker.
A durable hydraulic hammer for demanding demolition, agriculture, trenching and asphalt breaking applications.
High impact energy with ABF protection
The DOZCO D75 is a durable, versatile hydraulic tool for mini-excavators, backhoes and skid steer loaders. It is engineered for longevity, reliable performance and reduced maintenance across demanding rock breaking work.
Carrier class4-8 ton
Oil flow50-90 lpm
Impact rate400-800 BPM
| Operating Weight | 426 kg |
|---|---|
| Box / Side Weight | 400 kg / 420 kg |
| Height (Incl. Tool) | 1928 mm box / 1575 mm side / 1883 mm top split |
| Tool Diameter | 75 mm |
| Tool Length | 700 mm |
| Optimal Oil Flow | 50-90 lpm |
| Setting Pressure | 180 bar |
| Operating Pressure | 120-150 bar |
| Return Line Pressure | 10 bar |
| Bottom Plate Thickness | 30 mm HB |
| Hose Size | 12 mm (1/2") in and out |
| Control Valve | Internal |
| Auto Greasing | Optional |
| Anti Blank Firing | Yes |

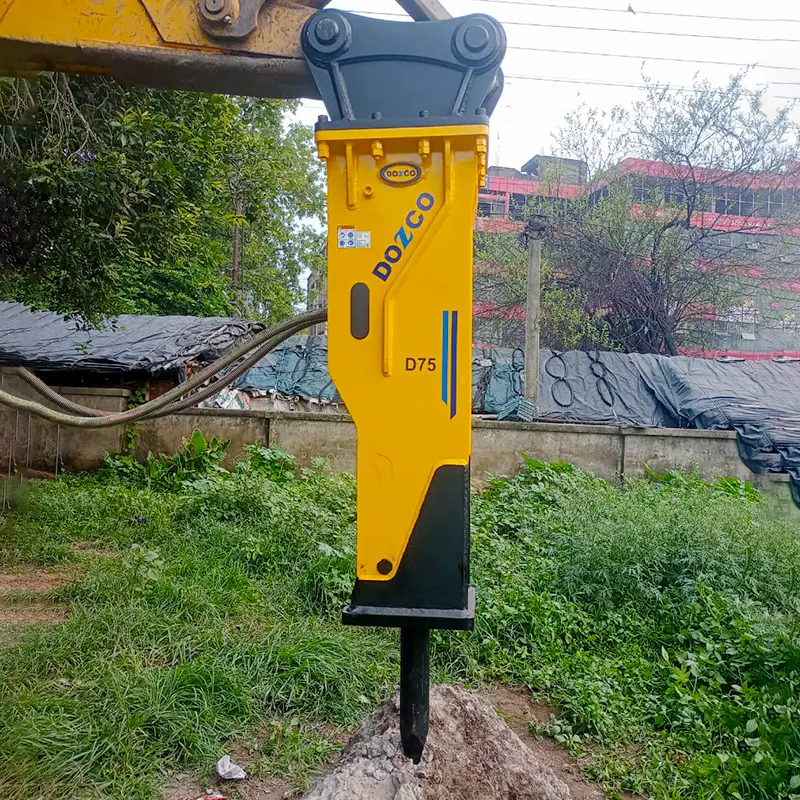

D75 in action
Quick answers
Can I use the D75 on a 5-ton excavator?
Yes. DOZCO lists the D75 for 5-8 tonne excavators, with the specification table showing a 4-8 tonne applicable carrier range.
Is auto greasing available?
Yes. Auto greasing is offered as an optional feature to reduce manual lubrication during longer shifts.
Does it include anti-blank firing?
Yes. The D75 includes Anti Blank Firing, which helps prevent firing when the tool is not in contact with material.
