DOZCO D135 Rock Breaker.
A robust, high-output hydraulic rock breaker for primary and secondary breaking, tunnelling and major construction work.
Exceptional power for 18-26 tonne carriers
The DOZCO D135 is a robust attachment for primary and secondary breaking and tunnelling projects. It delivers high power and efficiency with reliable performance and precise control across demanding construction and rock-breaking operations.
Carrier class18-26 ton
Oil flow120-180 lpm
Impact rate300-550 BPM
| Operating Weight | 1725 kg box / 1651 kg side / 1690 kg top split |
|---|---|
| Height (Incl. Tool) | 2666 mm box / 2368 mm side / 2714 mm top split |
| Tool Diameter | 135 mm |
| Tool Length | 1200 mm |
| Optimal Oil Flow | 120-180 lpm |
| Setting Pressure | 220 bar |
| Operating Pressure | 160-190 bar |
| Return Line Pressure | 10 bar |
| Bottom Plate Thickness | 50 mm HB |
| Hose Size | 1" in and out |
| Control Valve | External |
| 2 Stroke Control | Yes |
| Accumulator | Yes |
| Auto Greasing | Optional |
| Anti Blank Firing | Yes |

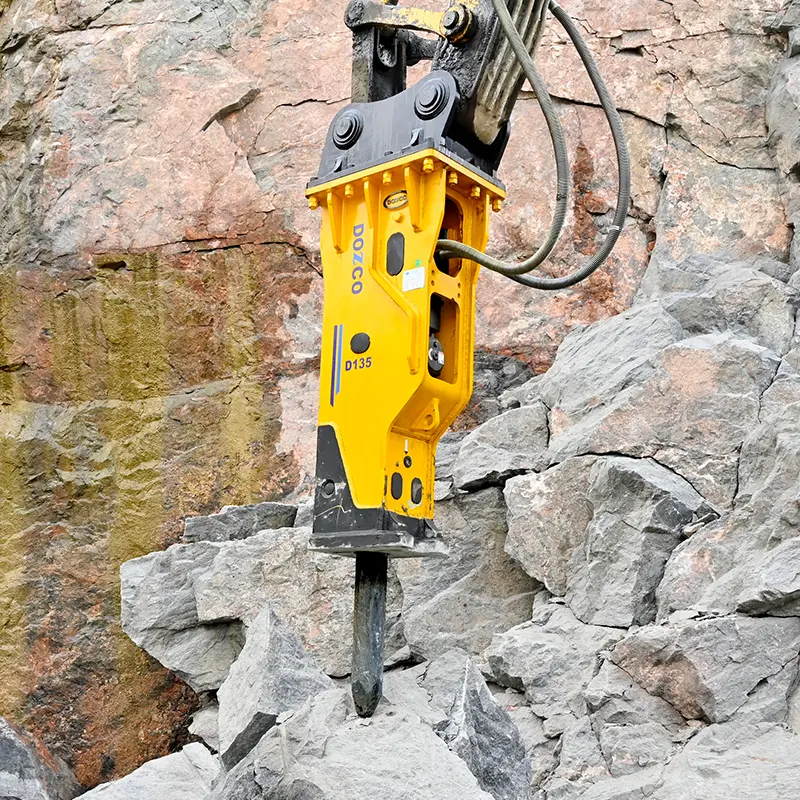

D135 in action
Quick answers
What carrier size suits the D135?
The D135 is designed for excavators in the 18-26 tonne carrier class, subject to hydraulic flow, pressure and fitment.
What work is it designed for?
It is built for primary and secondary breaking, tunnelling and demanding construction or hard-rock applications.
What productivity features are included?
The D135 includes two-stroke control, an accumulator and Anti Blank Firing, with auto greasing available as an option.
