DOZCO D110 Rock Breaker.
A durable, high-performance rock breaker for primary and secondary breaking, tunnelling and reinforced concrete.
Strong impact energy for demanding sites
The DOZCO D110 is a durable hydraulic tool designed for medium-range excavators across construction and mining work. Its rugged design, efficient operation and reliable output help reduce maintenance requirements while supporting long service life on tough job sites.
Carrier class12-16 ton
Oil flow90-120 lpm
Impact rate350-650 BPM
| Operating Weight | 973 kg box / 875 kg side / 950 kg top split |
|---|---|
| Height (Incl. Tool) | 2338 mm box / 2060 mm side / 2342 mm top split |
| Tool Diameter | 110 mm |
| Tool Length | 1000 mm |
| Optimal Oil Flow | 90-120 lpm |
| Setting Pressure | 200 bar |
| Operating Pressure | 150-180 bar |
| Return Line Pressure | 10 bar |
| Bottom Plate Thickness | 40 mm HB |
| Hose Size | 3/4" in and out |
| Control Valve | Internal |
| Auto Greasing | Optional |
| Anti Blank Firing | Yes |

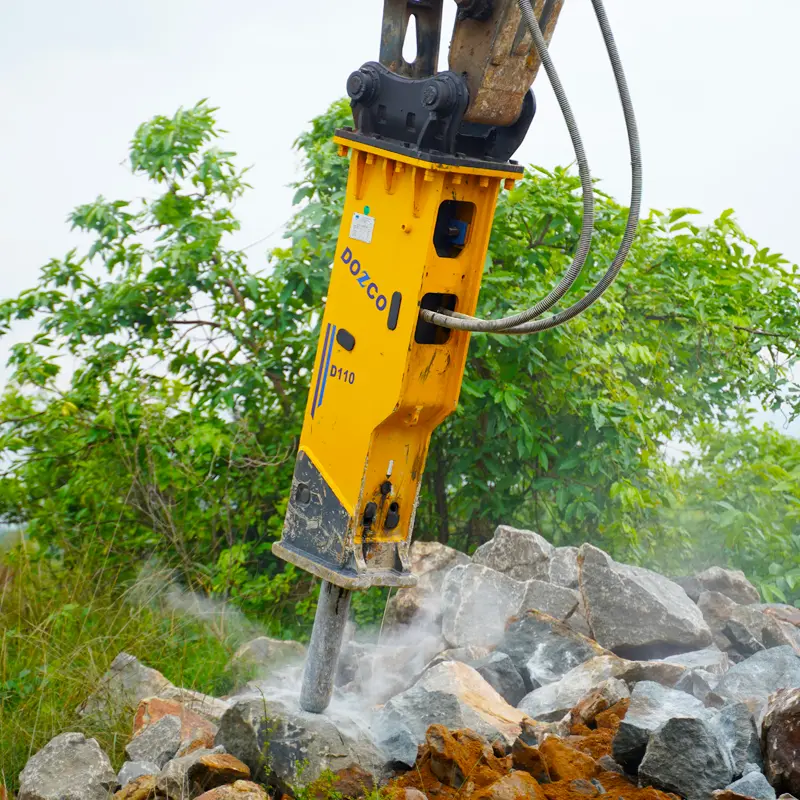

D110 in action
Quick answers
Does the D110 include anti-blank firing?
Yes. Anti Blank Firing helps prevent unnecessary blank firing and reduces avoidable stress on the attachment and carrier.
What hydraulic oil flow does it require?
The D110 is designed for an optimal oil flow of 90-120 litres per minute and an operating pressure of 150-180 bar.
What is the impact rate?
The D110 delivers approximately 350-650 blows per minute, balancing breaking power and control across varied materials.
