Sales / Rock breakers
Heavy Range
DOZCO 5000A Rock Breaker.
A high-capacity hydraulic rock breaker for major primary and secondary breaking and tunnelling projects.
Exceptional output for 45-60 tonne carriers
The DOZCO 5000A is built for industries that require powerful, reliable equipment for tough rock-breaking applications. Designed for 45-60 tonne excavators, it delivers dependable performance across large-scale primary and secondary breaking and tunnelling projects.
Carrier class45-60 ton
Oil flow240-320 lpm
Impact rate200-350 BPM
| Operating Weight | 4269 kg |
|---|---|
| Height (Incl. Tool) | 3703 mm |
| Tool Diameter | 175 mm |
| Tool Length | 1500 mm |
| Optimal Oil Flow | 240-320 lpm |
| Setting Pressure | 220 bar |
| Operating Pressure | 150-190 bar |
| Return Line Pressure | 10 bar |
| Bottom Plate Thickness | 60 mm HB |
| Hose Size | 1¼" in and out |
| Control Valve | External |
| 2 Stroke Control | Yes |
| Accumulator | Yes |
| Auto Greasing | Optional |
| Anti Blank Firing | No |

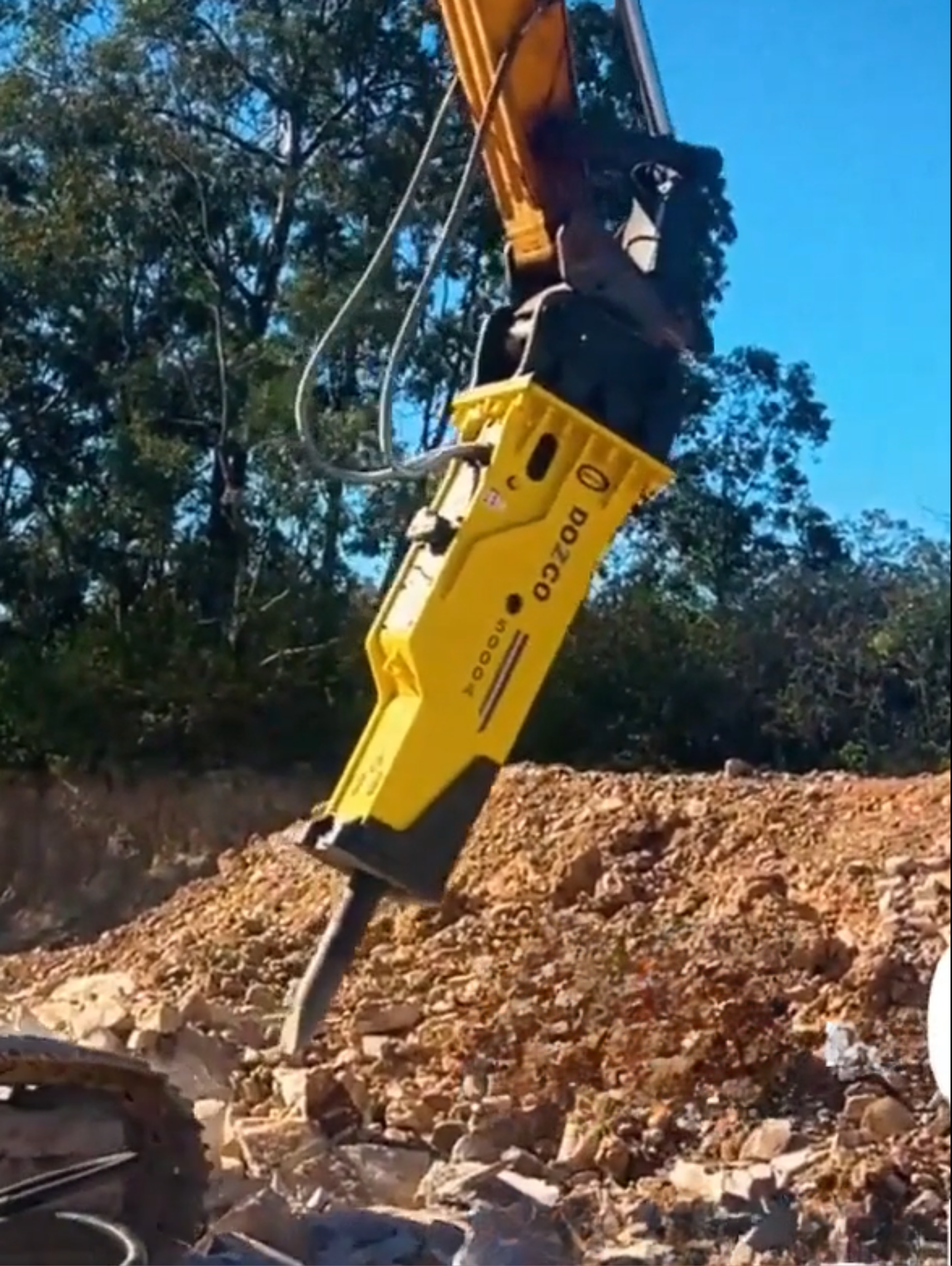

5000A in action
Quick answers
What carrier size suits the 5000A?
The 5000A is designed for excavators in the 45-60 tonne carrier class, subject to hydraulic flow, pressure and fitment.
What work is it designed for?
It is designed for large-scale primary and secondary breaking, tunnelling, quarry work and concrete demolition.
What hydraulic features are included?
The 5000A includes two-stroke control and an accumulator, with optional auto greasing. Anti Blank Firing is not included.
