DOZCO 430A Rock Breaker.
A compact but powerful hydraulic rock breaker for primary and secondary breaking, trenching and tunneling tasks.
Balanced impact energy and control
The DOZCO 430A is designed for excavators in the 4.0-8.0 tonne class. It delivers strong, controlled breaking performance for reinforced concrete, hard rock, demolition, trenching and general site rock breaking when matched to the correct carrier hydraulics.
| Operating Weight | 434 kg box / 386 kg side |
|---|---|
| Height (Incl. Tool) | 1928 mm box / 1620 mm side |
| Tool Diameter | 75 mm |
| Tool Length | 700 mm |
| Optimal Oil Flow | 50-90 lpm |
| Setting Pressure | 180 bar |
| Operating Pressure | 120-150 bar |
| Return Line Pressure | 10 kg/cm2 |
| Bottom Plate Thickness | 30 mm HB |
| Control Valve | In-built |
| Auto Greasing | Optional |
| Anti Blank Firing | No |

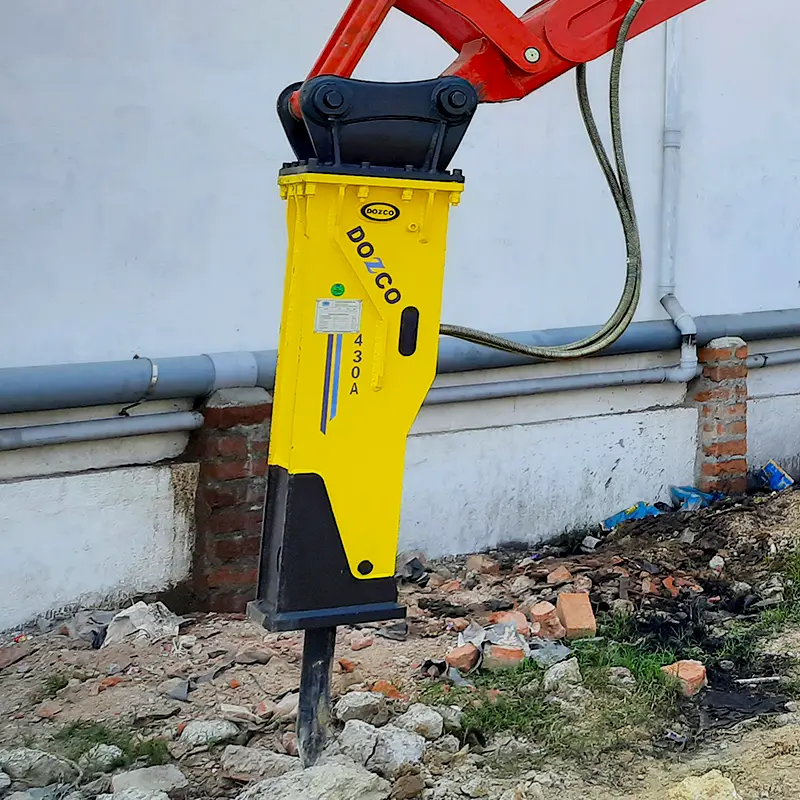

430A in action
Quick answers
What makes the 430A useful for Australian excavators?
It is suited to 4-8 tonne excavators and provides balanced impact energy for varied rock breaking tasks across site conditions.
Can it handle reinforced concrete and hard rock?
Yes, when paired with a carrier that provides the correct oil flow and operating pressure.
Are spare tools and tips available?
Yes. Compatible chisels and hardened tool tips are available to maintain impact efficiency and service life.
What is the impact rate range?
The 430A operates between 400 and 800 blows per minute.
