DOZCO 100A Rock Breaker.
A compact hydraulic rock breaker for mini excavators, backhoes and skid steer loaders working in tight access conditions.
Compact rock breaker for lighter carriers
DOZCO positions the 100A as a compact, powerful attachment for demolition, agriculture, trenching, asphalt and concrete breaking. It is designed for controlled rock breaking capability in confined job sites where a small carrier still needs reliable impact performance.
Carrier class0.5-1.5 ton
Oil flow15-30 lpm
Impact rate800-1400 BPM
| Operating Weight | 138 kg |
|---|---|
| Tool Diameter | 40 mm |
| Tool Length | 450 mm |
| Setting Pressure | 150 bar |
| Operating Pressure | 90-120 bar |
| Return Line Pressure | 10 bar |
| Hose Size | 1/2" in and out |
| Control Valve | Internal |

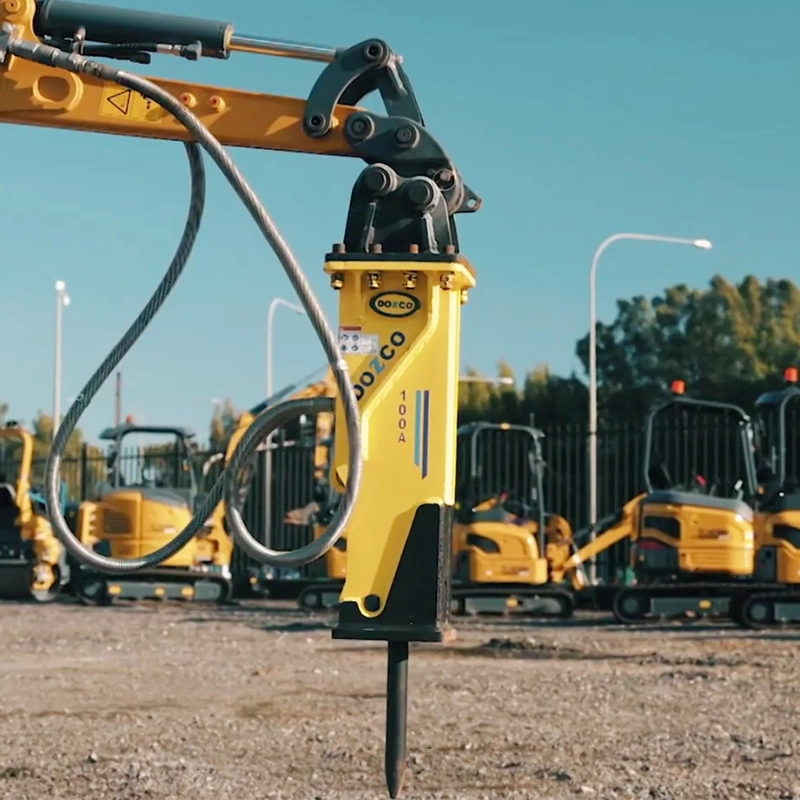

100A in action
Quick answers
What tasks is it best suited for?
Light demolition, trenching, agriculture work, and breaking asphalt or concrete in confined job sites.
What hydraulic requirements does it need?
The 100A operates at 15-30 lpm oil flow with an operating pressure range of 90-120 bar.
What is the impact performance?
It delivers an impact rate of 800-1400 BPM through a 40 mm tool diameter.
